ELECTRIC BALE OUT FURNACE

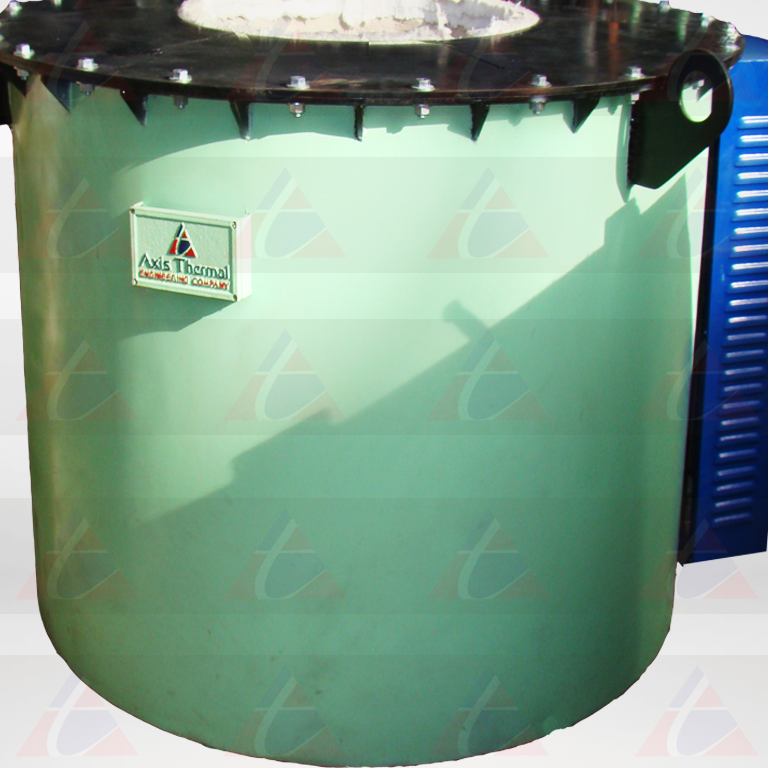

AXIS BALE OUT FURNACES FOR ALUMINIUM, BRASS & GUN METALS are efficient and complete melting and holding units. The furnace is refractory lined and supplied as a complete package which includes blower, burner and crucible (not guaranteed). The durable body is constructed from thick reinforced pl mild steel plates. The crucible is available in options of either cast Iron, graphite or, silicon carbide crucibles (Client’s option).
The Furnace is supplied with a Axis self proportionating burner/ Compact type burner/ Conventional type burner for all fuels can be supplied.
Combustion air will be passed by Axis centrifugal air blower either direct or through recuperator. Preheated oil will be supplied to the burner at a constant pressure to the burner from Axis Pumping and Heating unit (refer pumping unit catalogue).
The burner fires tangentially inside the shell lining into a circular combustion space so that the hot gases surround the crucible, ensuring uniform heating. Waste gases pass out through a flue at one side, allowing reasonable working conditions for the operator. Normally the flue discharge is upward for top exhaust. Optionally, waste gases collected in a fume extraction hood for discharge outside the production area.
OPTIONAL ACCESSORIES
- Oil Service Tank
- Out Flow Heater
- Semi Rotory Pump For Oil Tank
- Fume Extraction Unit
| HIGHLIGHTS |
|---|
|
| MODEL | CHARGE IN KG AL | MELT TIME IN MIN | LITRES PER 100 KG AL | DIMENSIONS IN MM | |||||
|---|---|---|---|---|---|---|---|---|---|
| FROM COLD | SUBSEQ CHARGE | A | B | C | D | E | |||
| B50 | 50 | 120 | 90 | 22-25 | 350 | 934 | 827 | 774 | 215 |
| B100 | 100 | 120 | 90 | 22-25 | 350 | 934 | 980 | 820 | 300 |
| B150 | 150 | 120 | 90 | 22-25 | 350 | 934 | 980 | 820 | 300 |
| B200 | 200 | 120 | 90 | 22-25 | 450 | 1048 | 980 | 820 | 300 |
| B250 | 250 | 120 | 90 | 22-25 | 450 | 1067 | 1031 | 871 | 349 |
| B300 | 300 | 120 | 90 | 22-25 | 400 | 1067 | 1031 | 871 | 349 |
| 90 | 22-25 | 382 | 1181 | 1144 | 1031 | 353 | |||
